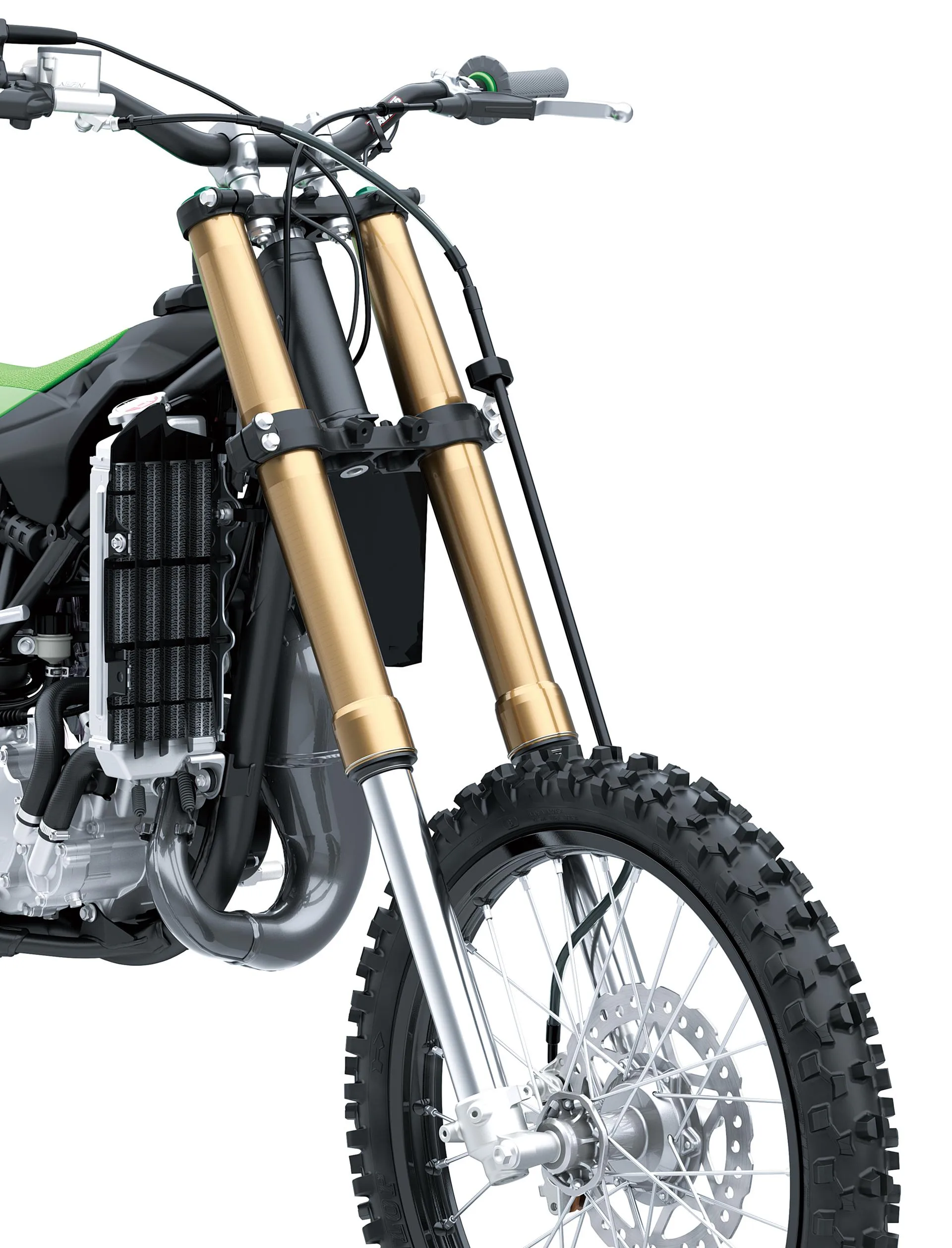

Inverted fork with adjustable compression and rebound damping

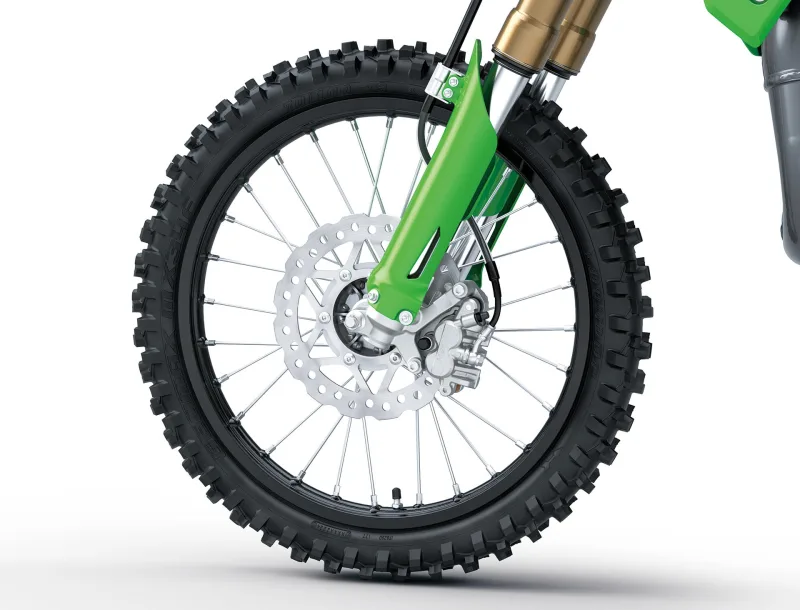

Front brake type
Single petal disc

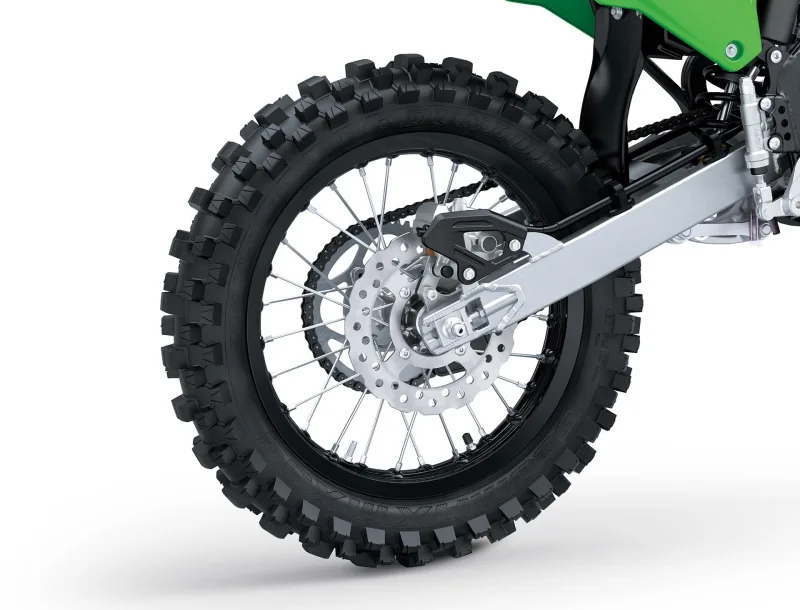

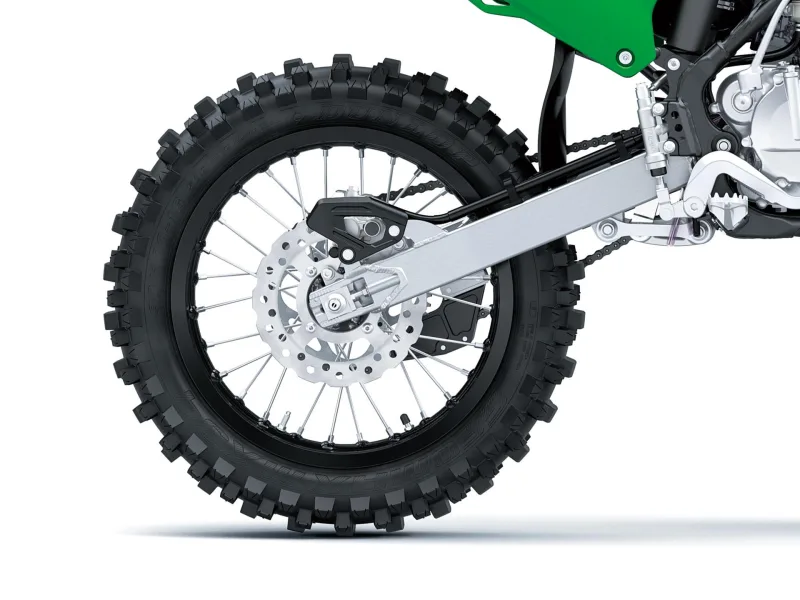

Rear brake type
Single petal disc
Front brake diameter
Ø 240 mm
Wheel base
1,310 mm
Seat height
865 mm
Ground clearance
330 mm
Curb mass*
78.4 kg
Fuel capacity
5.0 litres
Valve system
Piston reed valve
Starting system
Primary kick
Primary reduction ratio
3.400 (68/20)
Gear ratios 1st
2.538 (33/13)
Gear ratios 2nd
1.875 (30/16)
Gear ratios 3rd
1.500 (27/18)
Gear ratios 4th
1.250 (25/20)
Gear ratios 5th
1.090 (24/22)
Gear ratios 6th
0.956 (22/23)
Final reduction ratio
3.923 (51/13)
Wheel travel front
275 mm
Wheel travel rear
305 mm
Tyre, front
70/100-19 42M
Tyre, rear
90/100-16 51M
L x W x H
1,935 x 800 x 1,165 mm
Steering angle L/R
39° / 39°
*Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
Estimated dry weight**
74.8 kg
Front suspension diameter
Ø 43 mm

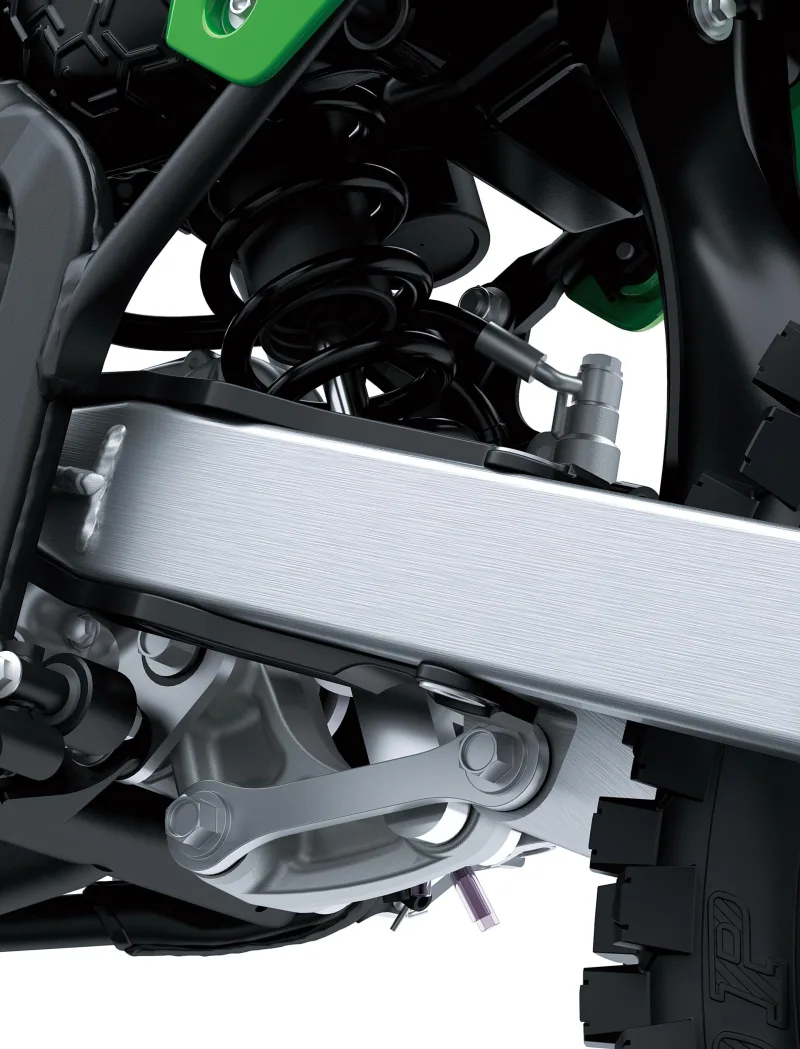

Rear suspension type
Uni-Trak, adjustable dual-range (high/low-speed) compression and adjustable rebound damping, and spring preload adjustability
Kawasaki KX112 Technische Daten
