Motor Hacmi	117 cu in

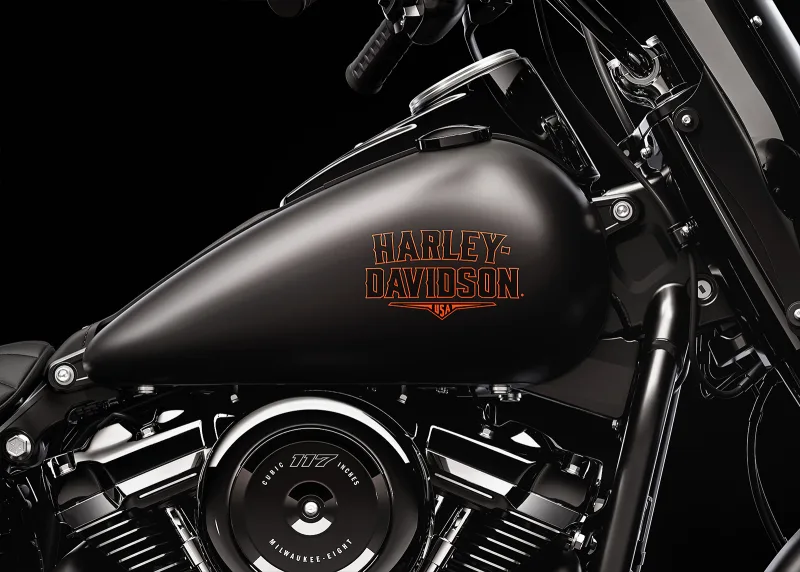

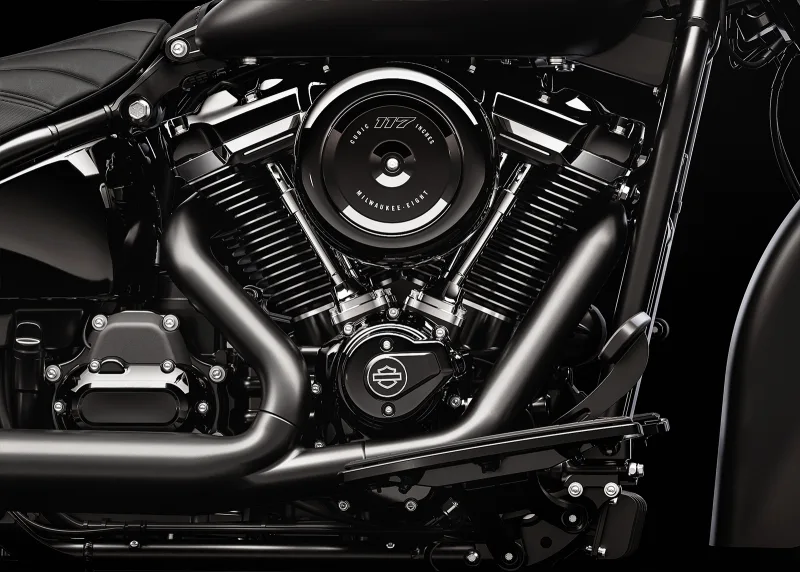

Motor Tipi	Milwaukee-Eight® 117 Classic
Maksimum Tork	120 ft-lb
Çap	4.075 in.
Strok	4.5 in.
Sıkıştırma Oranı	10.3:1
Yakıt Sistemi	Electronic Sequential Port Fuel Injection (ESPFI)
Egzoz	2-into-1; catalyst in header

Seat Height, Laden	25.5 in.
Seat Height, Unladen	26.5 in.
Tire, Type	Dunlop® Harley-Davidson Series, bias blackwall front and rear
Tires, Front Specification	130/90B16,73H,BW
Tires, Rear Specification	150/80B16,77H,BW
Weight, In Running Order	686 lb.
Engine Torque Testing Method	J1349
Horsepower	98 HP / 73 kW @ 4600 rpm
Lean Angle, Right (deg.)	27
Lean Angle, Left (deg.)	27
Fuel Economy Testing Method	Estimated City/Hwy
Gear Ratios (overall) 1st	9.311
Gear Ratios (overall) 2nd	6.454
Gear Ratios (overall) 3rd	4.793
Gear Ratios (overall) 4th	3.882
Gear Ratios (overall) 5th	3.307
Gear Ratios (overall) 6th	2.79
Rear Shocks	Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

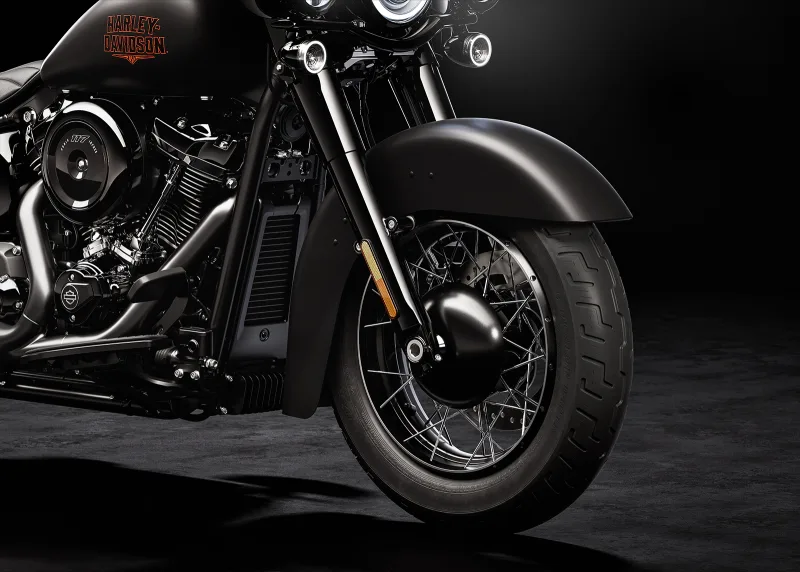

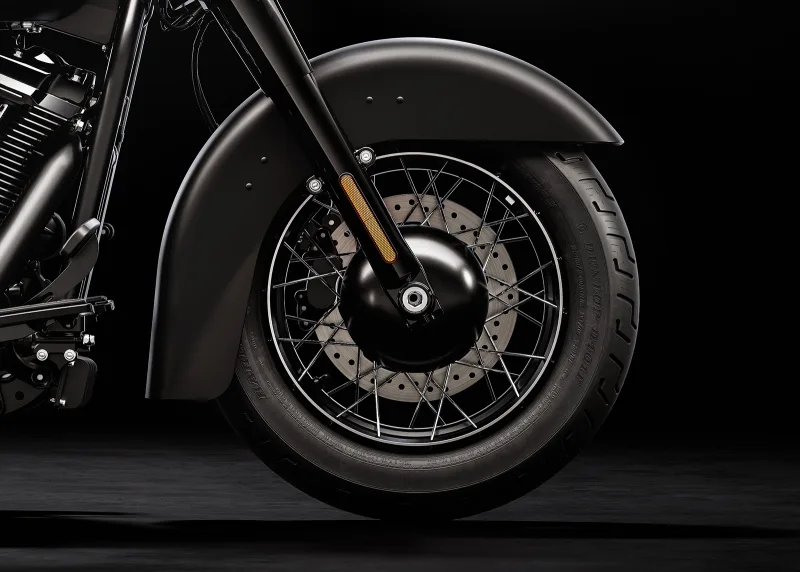

Wheels, Front Type	Black Tubeless Laced w/ 36 Bright Spokes
Wheels, Rear Type	Black Tubeless Laced w/ 36 Bright Spokes
Brakes, Caliper Type	4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type	Solid, uniform expansion rotors

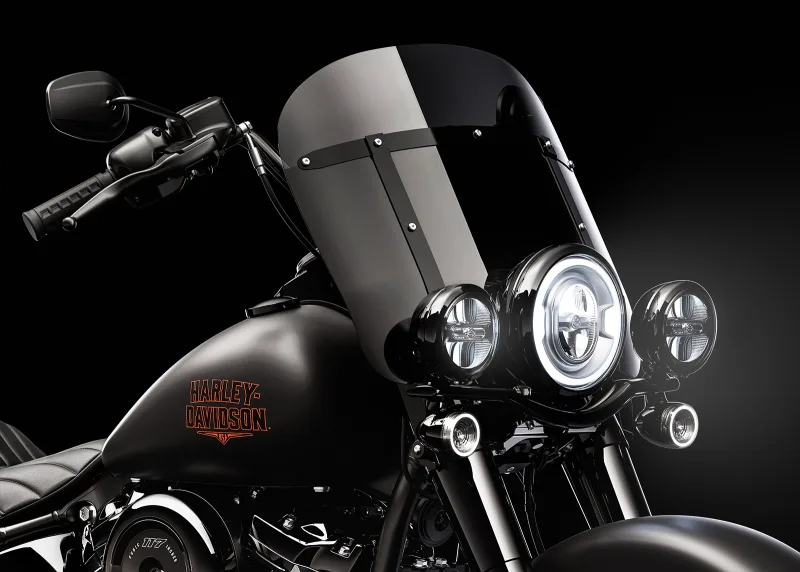

Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals	Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: LED Buffett tail lamp; Front Signal Lights: LED Bullet Turn Signals; Rear Turn Signals: LED bullet light bar

Rake Açısı	30
Trail	5.8 in.

Yağ Kapasitesi	5 qt.
Yakıt Deposu	5 gal.

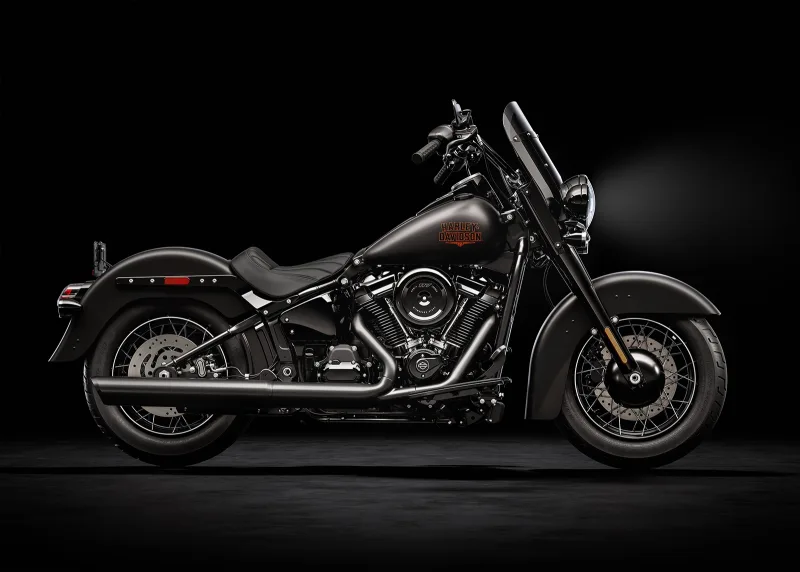

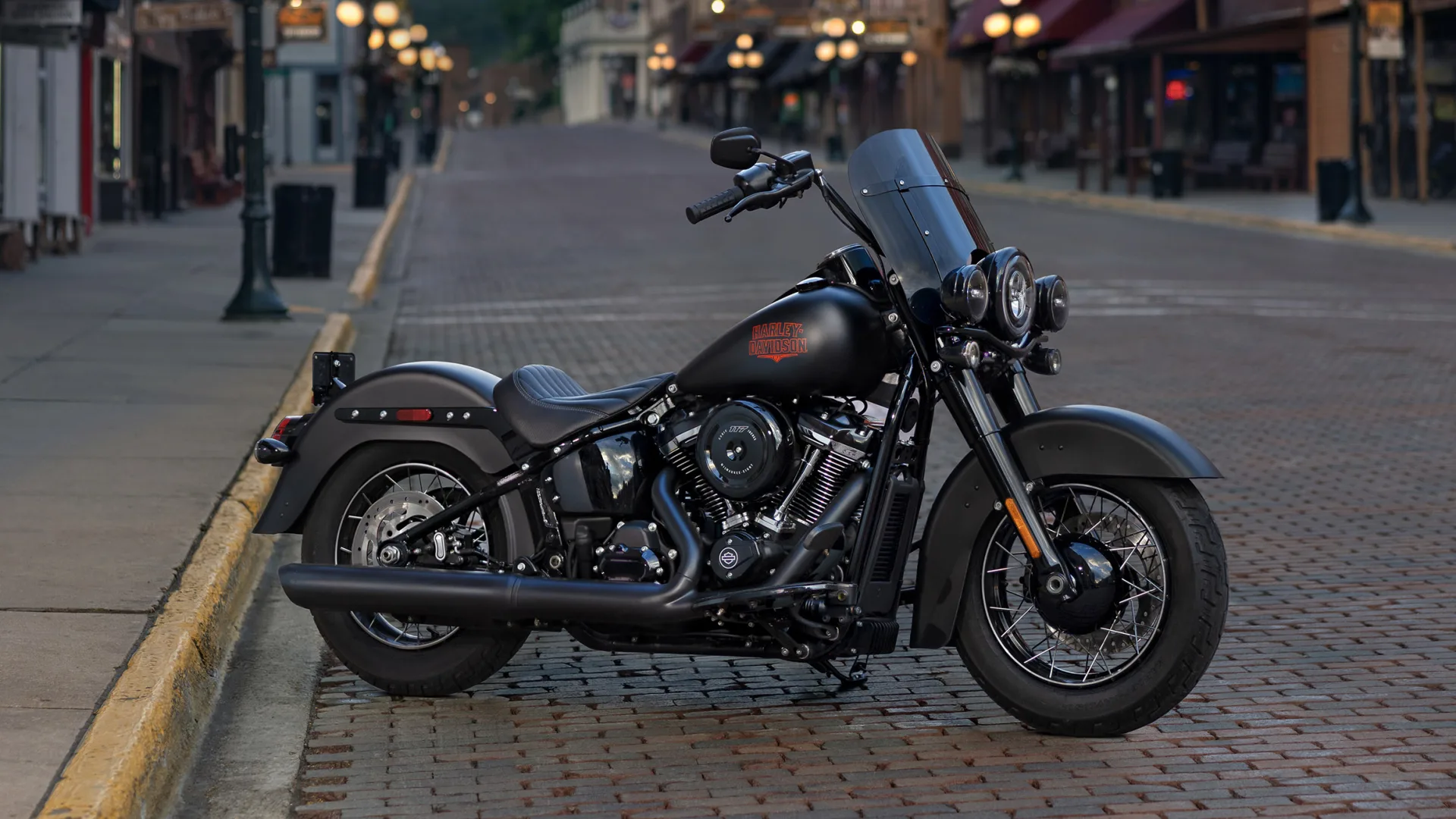

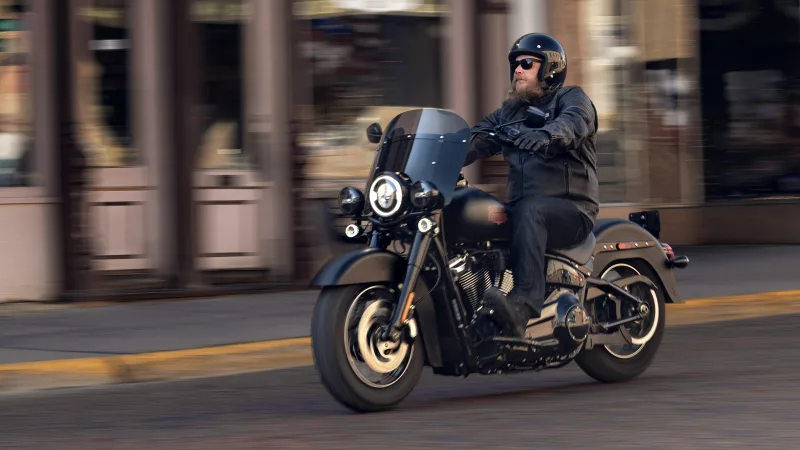

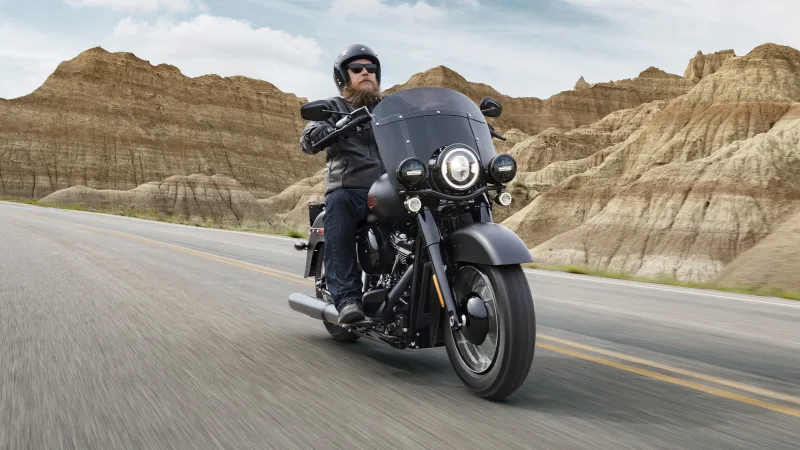

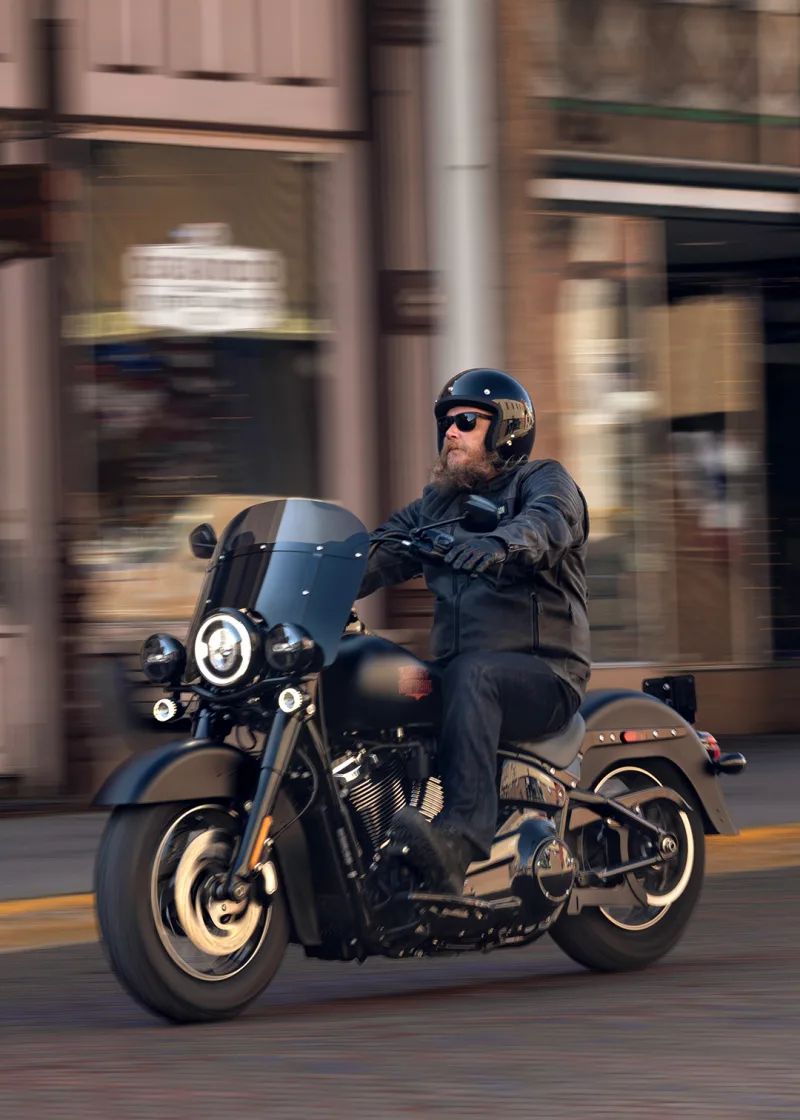

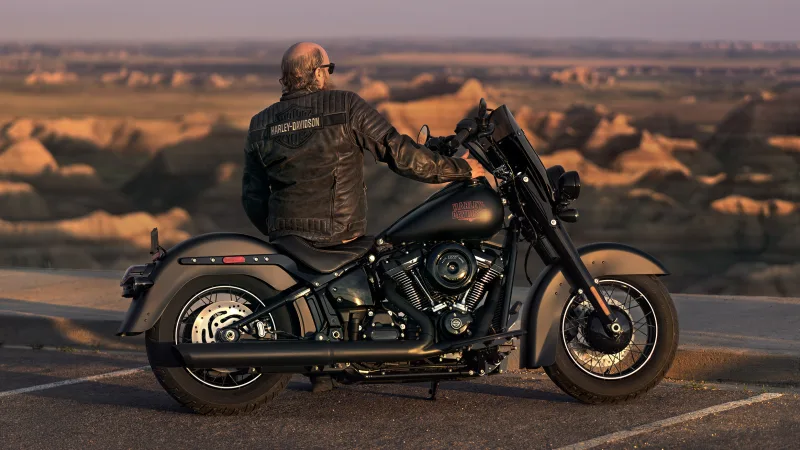

Harley-Davidson Deadwood

Harley-Davidson Deadwood Teknik Özellikleri
